PATIENT MONITORING
EMS에서 중증 케어까지
맞춤형 환자 모니터링 솔루션
EMS, 경증 및 중증 환자 진료 환경에 최적화된 바이오넷의 다기능 환자 모니터를 확인해 보세요. 직관적인 UI, 안정적인 네트워크 연결, 고도화된 환자 상태 경고 시스템으로 한 차원 높은 의료 서비스를 제공합니다.
EMS에서 중증 케어까지
12+
Parameters
64
Beds per Console
16
Full-Waveform Recall
CE · MFDS
ISO 13485 Certified
개요
구급 현장(EMS)부터 중환자실(High-Acuity)까지, 바이오넷의 환자 감시 장치는 모든 의료 환경에 맞춘 유연한 솔루션을 제공하여 공백 없는 고정밀 환자 케어를 실현합니다.
🩺 왜 바이오넷인가?
- EMS부터 중증 케어까지 완벽 대응
- 구급차, 일반 병동, 중환자실(ICU) 등 병원 내 모든 부서에 최적화된 맞춤형 라인업을 제공합니다.
- 직관적인 사용자 중심 디자인
- UI를 단순화하여 기기 조작의 번거로움을 줄이고, 의료진이 환자 케어에만 집중할 수 있도록 돕습니다.
- 원활한 네트워크 연동
- 중앙 모니터링 시스템 및 병원 내부 네트워크와 매끄럽게 통합되어 의료 데이터 업무가 빨라집니다.
FEATURED MODELS
Best Sellers Across the Lineup
Selected by procurement teams across 80+ countries.
BM Central Pro
Central nurse station for up to 64 connected monitors. HL7 interface, remote control.
BM Central Pro
Central nurse station for up to 64 connected monitors. HL7 interface, remote control.
PRODUCT LINEUP
Four Tiers, One Clinical Language
Choose the form factor and feature set that matches each ward,
then unify all monitoring through BM Central Pro.
BM1
7″ compact bedside monitor. Lightweight, transport-ready, full multi-parameter monitoring with Wi-Fi central network.
Brio X30
8″ premium multi-touch monitor. Modular parameter options, smart alarm logic, OR / step-down ICU ready.
Brio X50
12.1″ premium multi-touch monitor. Multi-gas / BIS / NMT modules for OR. Anesthesia record export.

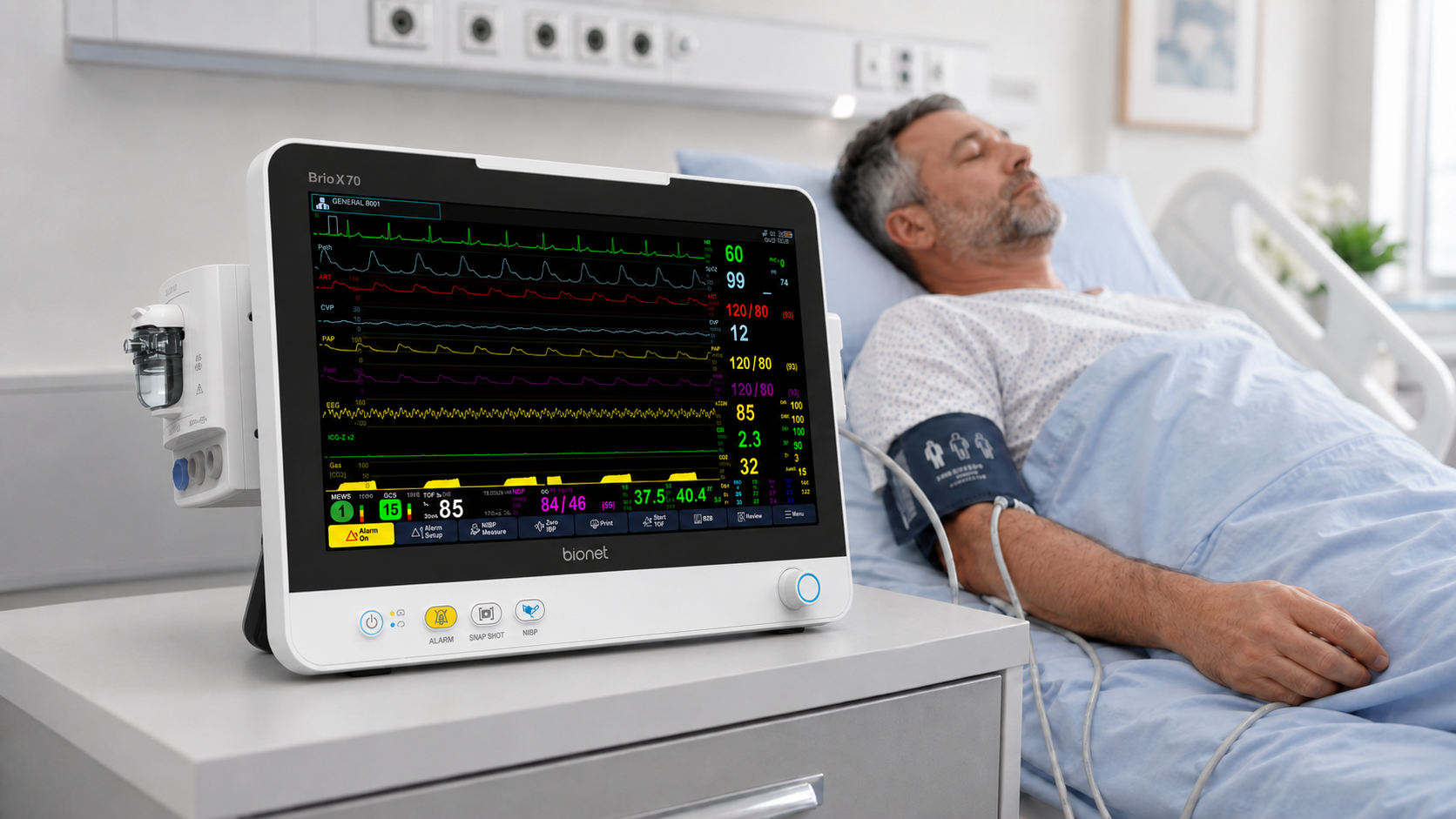

Brio X70
15.6″ flagship multi-touch monitor. High-acuity ICU. Full modular CO / BIS / multi-gas, AI alarm filtering.
BM Central Pro
Central nurse station consolidating up to 64 connected monitors via HL7 interface, with remote control and patient data management.

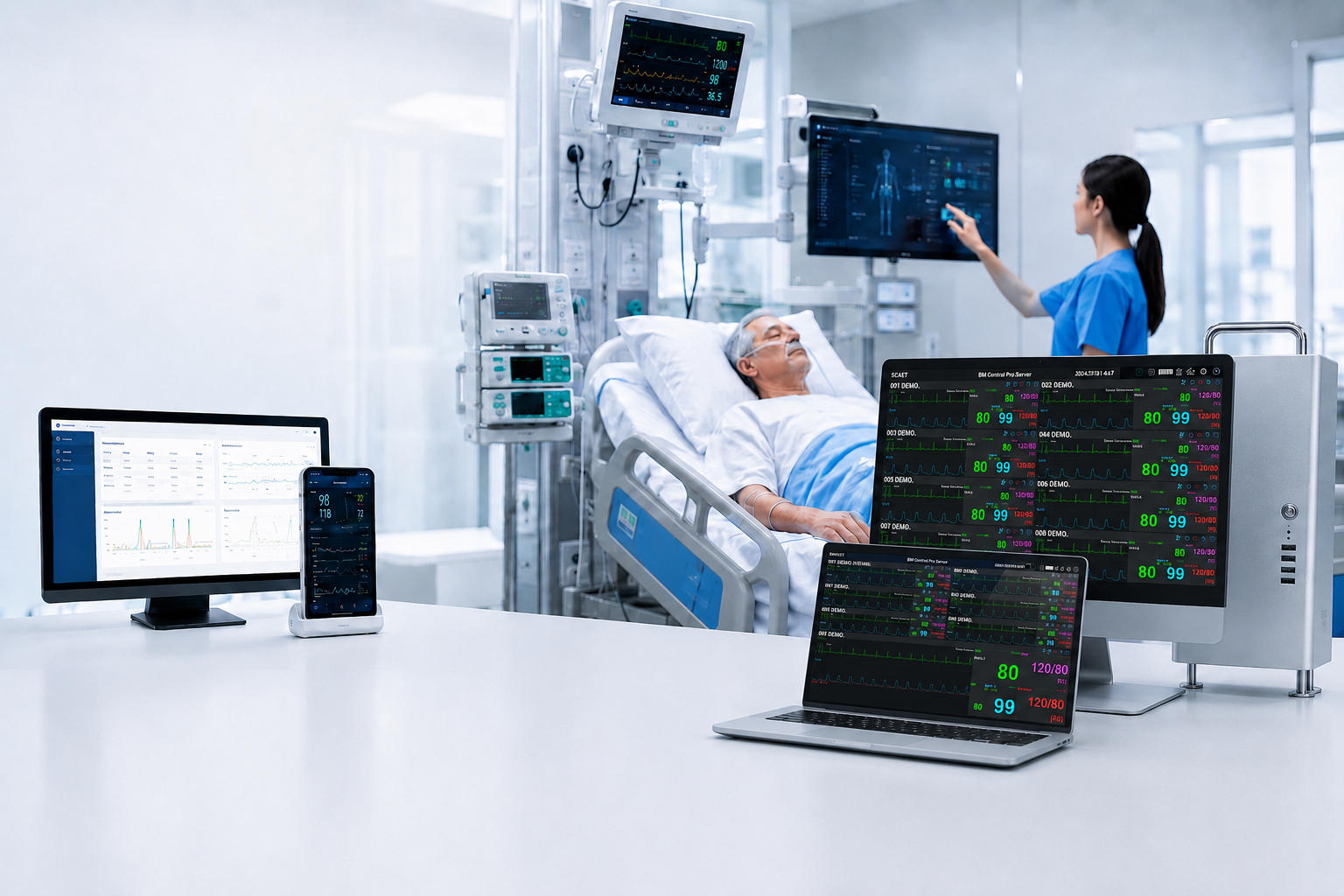

CENTRAL MONITORING
BM Central Pro — One Console, Every Bed
Consolidate connected monitors into a single LCD display with HL7 interface, remote control, and centralized patient data management.
- 32 monitoring display on one 32″ LCD monitor
- Up to 64 monitoring connections (Dual Monitor setup)
- Up to 16 wireless monitoring connections
- HL7 interface for HIS / EMR integration
- Remote control for connected monitors
- Centralized patient data management — main display, waveform review, ECG review
- Compatible with Brio X-Series and BM Series monitors
64
Beds per console
Dual-monitor setup supports up to 64 connected monitors per BM Central Pro console.
HL7
HIS / EMR interface
Direct HL7 interface for HIS / EMR data exchange.
16
Wireless connections
Up to 16 monitors connected wirelessly to BM Central Pro.
CLINICAL APPLICATIONS
Recommended Setup by Care Setting
병동마다 필요한 모니터링의 강도는 다릅니다. 각 진료 환경에 최적화된 바이오넷 환자 모니터 라인업을 확인해 보세요.
중증·중환자실
(High-Acuity ICU)
Brio X70 (15.6″ 플래그십)
12lead ECG로 보다 심도있는 심전도 검사와 모듈형 심박출량CO, 마취심도BIS, 멀티가스 multi-gas 측정 기능 및 4개 채널의 침습적 동맥압 (IBP)으로 중환자 모니터링의 최적화된 기능이 탑재되어 있으며 Central Monitoring HL7 인터페이스를 통해 최대 64대의 모니터를 연동하는 BM CentralPro와 결합하여 병원 전체의 통합 모니터링 환경제공
일반 병동 / 준중환자실
(General Ward /Step-Down)
Brio X5, Brio X3
확장형 호기말 이산화탄소EtCO, 침습적 동맥압IBP, 모듈을 갖춘
다기능 베드사이드 모니터와 BM Central Central Monitoring을 통한 7일간의 전체 파형(Full-disclosure waveform) 저장 및 리콜 기능 제공
환자 이송 / 응급 환자 분류
(Transport / Bedside Triage)
BM1 (7″) + Brio X3 (8″)컴팩트
라인으로 EWS ( Early Warning Score)와 GSG ( Glasgow Coma Scale, Brio X3)이 탑재되어 있어 즉각적인 환자의 상태 표시 및 분류 가능
FREQUENTLY ASKED
Patient Monitor Questions
Specifications, integration, certifications, and procurement.
All Bionet monitors include ECG (3/5/12-lead with arrhythmia analysis), SpO2 (Masimo / Nellcor / Bionet sensors supported), NIBP (adult / pediatric / neonate cuffs), respiration, dual-channel temperature, and IBP up to 4 invasive channels. Optional modules: EtCO2 (mainstream and sidestream), multi-gas, cardiac output (thermodilution and continuous), BIS depth-of-anesthesia, and NMT.
Yes. BM Central Pro consolidates up to 64 connected monitors (dual-monitor setup) or 16 wireless onto a single 32″ LCD console. Provides HL7 interface for HIS / EMR data exchange, remote control of connected monitors, and centralized patient data management with main display, waveform review, and ECG review modes.
Bionet patient monitor certification status:
• Brio X Series (Brio X30 / Brio X50 / Brio X70) — CE MDR-certified (2023), MFDS-approved (2022)
• BM Series (BM1 / BM3 / BM5 / BM7) — CE MDD Class IIa, MFDS-approved (both 2021)
• BM Central Pro — CE MDR-certified (2023)
All manufactured under Bionet’s ISO 13485 quality management system (since 2007). FDA clearance is in process for the patient monitor portfolio. For specific model documentation, contact your local Bionet office (Korea HQ / Bionet America / Bionet Europe).
Brio X-Series and BM-Series monitors include configurable alarm priority settings, audio/visual alert hierarchies, and pause/silence controls per operator preference. Alarm priority is also routed to mobile devices via the BM Central Pro nurse app.
BM Series (BM1 / BM3 / BM5 / BM7) are bedside monitors — compact (7″–8″) for general ward and transport, standard (10.4″–12.1″) for OR and step-down ICU. Brio X-Series (X30 / X50 / X70) are premium 8″–15.6″ multi-touch monitors for high-acuity ICU and OR with modular advanced parameters and AI alarm logic. BM Central Pro is the central station that aggregates monitors from any tier into a single nurse console.
Standard 2-year warranty with optional 5-year extended warranty. We provide 24/7 service hotline, multilingual training, on-site installation by certified partners, software updates, and replacement parts availability for 7+ years post-purchase. Find your local partner.
Bionet sells through certified distribution partners worldwide. Use our Global Offices directory to find your local partner, or contact us for direct hospital procurement and tender support.
병동별 맞춤형 도입 제안부터 중앙 모니터링 구축,
병원 정보시스템(HIS) 연동까지 바이오넷 전문가와 직접 상담해 보세요.
CERTIFICATIONS
Compliant with global medical device standards
