Recognizing Changes in a Patient’s Condition: Early Warning Scores on the Bionet Brio X Series
Hello from Bionet! 😃
A single measurement rarely tells the whole story of a patient’s condition.
Clinicians review multiple vital signs—including blood pressure, pulse rate, respiratory rate, and temperature—alongside their observations of the patient.
But how can this information be organized consistently to support patient assessment?
Today, we’ll introduce Early Warning Scores (EWS), which help clinicians assess a patient’s condition and risk of deterioration, and explore the EWS features on the Bionet Brio X Series.
What Is an Early Warning Score?
An EWS is a clinical assessment tool that converts vital signs and clinical observations into scores using predefined criteria.
By bringing several measurements together in a structured scoring system, it helps clinicians assess a patient’s condition and identify the need for further evaluation.
Put simply, EWS provides a consistent framework for organizing information about a patient.
NEWS2, a widely used early warning scoring system, assesses respiratory rate, oxygen saturation, systolic blood pressure, pulse rate, level of consciousness or new confusion, and temperature. It also accounts for supplemental oxygen use.
However, EWS is an umbrella term for several scoring systems. The assessment parameters and scoring criteria vary depending on the protocol.

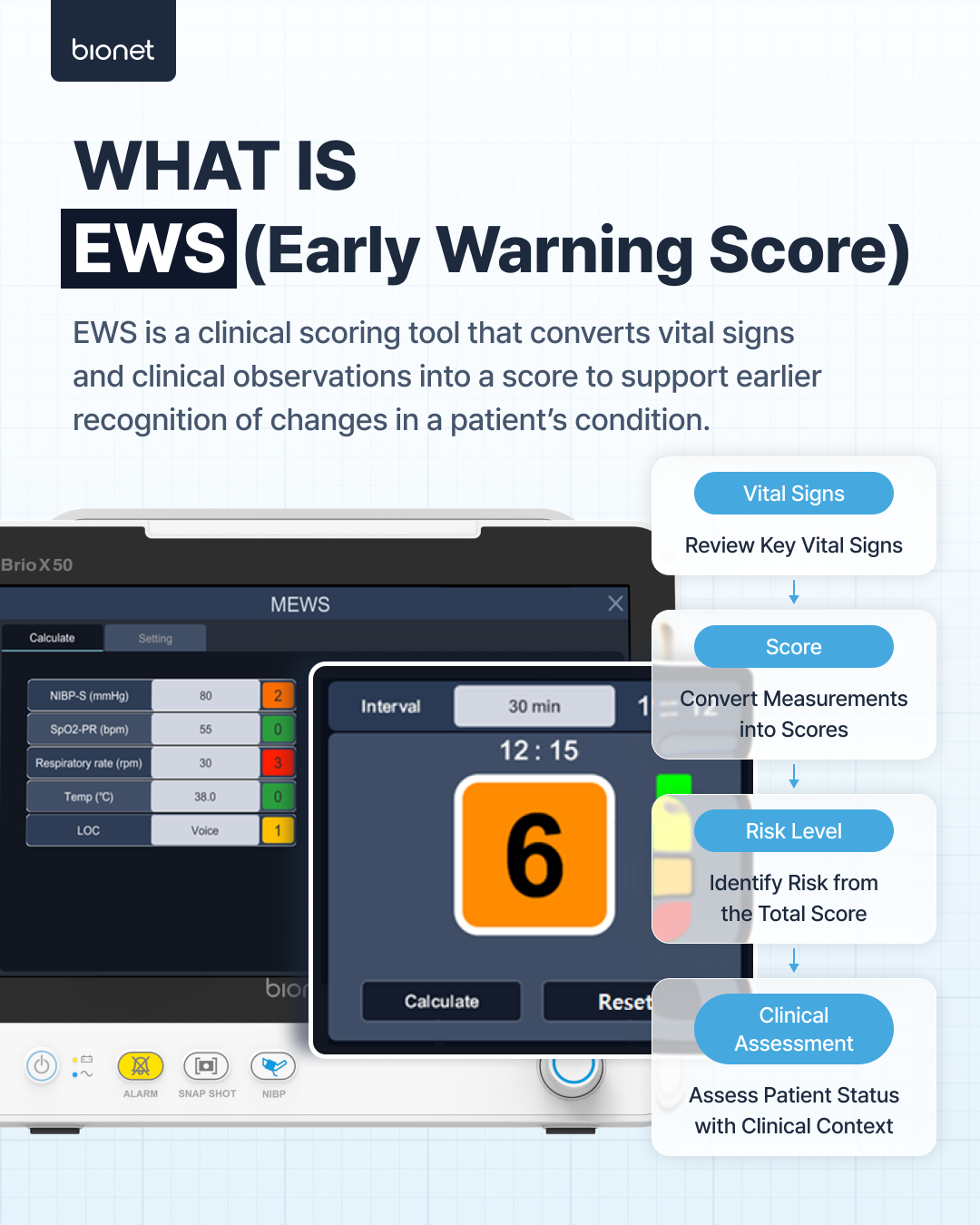

From Vital Signs to Clinical Assessment
The EWS process can be understood in four main steps.
1. Gather measurements and observations | Vital Signs
First, clinicians collect the information required by the selected protocol.
This may include blood pressure, pulse rate, respiratory rate, and temperature, as well as findings that require clinical observation, such as level of consciousness. Accurate assessment depends on appropriately measuring and verifying each input.
2. Apply the scoring criteria | Score
Measurements and observations are assigned scores according to the selected protocol.
Scores generally reflect where a value falls within predefined ranges at the time of assessment, rather than the difference from a previous measurement.
3. Review the indicated risk level | Risk Level
The resulting scores help clinicians assess risk and determine whether further evaluation is needed.
Score thresholds and response criteria differ between protocols. The same numerical thresholds or color categories should not be assumed to apply to every EWS system.
4. Interpret the findings in context | Clinical Assessment
Clinicians consider the score alongside the patient’s symptoms, medical history, and other observations to determine the appropriate assessment and response. EWS supports this process. A score alone does not diagnose a condition or determine treatment.
Trends Matter Alongside the Current Score
EWS can be useful both for assessing a patient at a particular moment and for comparing results over time.
Looking at whether the score has increased—and which parameters have changed—can provide a clearer understanding of the patient’s condition.
For example, if the total score rises, it is important to identify whether that change came from respiratory rate, blood pressure, or another parameter.
Conversely, a low score does not rule out the need for further assessment. New symptoms reported by the patient or concerning changes observed by clinicians may still warrant attention.
The score should always be considered alongside the patient’s actual clinical presentation.
Choosing an EWS Protocol for the Patient and Care Setting
Patient assessment requires criteria appropriate to the patient population and clinical setting. EWS protocols differ in whom they are designed for and how they assess risk.
Clinicians select an appropriate protocol based on the patient population, care setting, and their institution’s assessment guidelines.
Here, a protocol defines which parameters are assessed, how points are assigned, and how the resulting scores are interpreted.

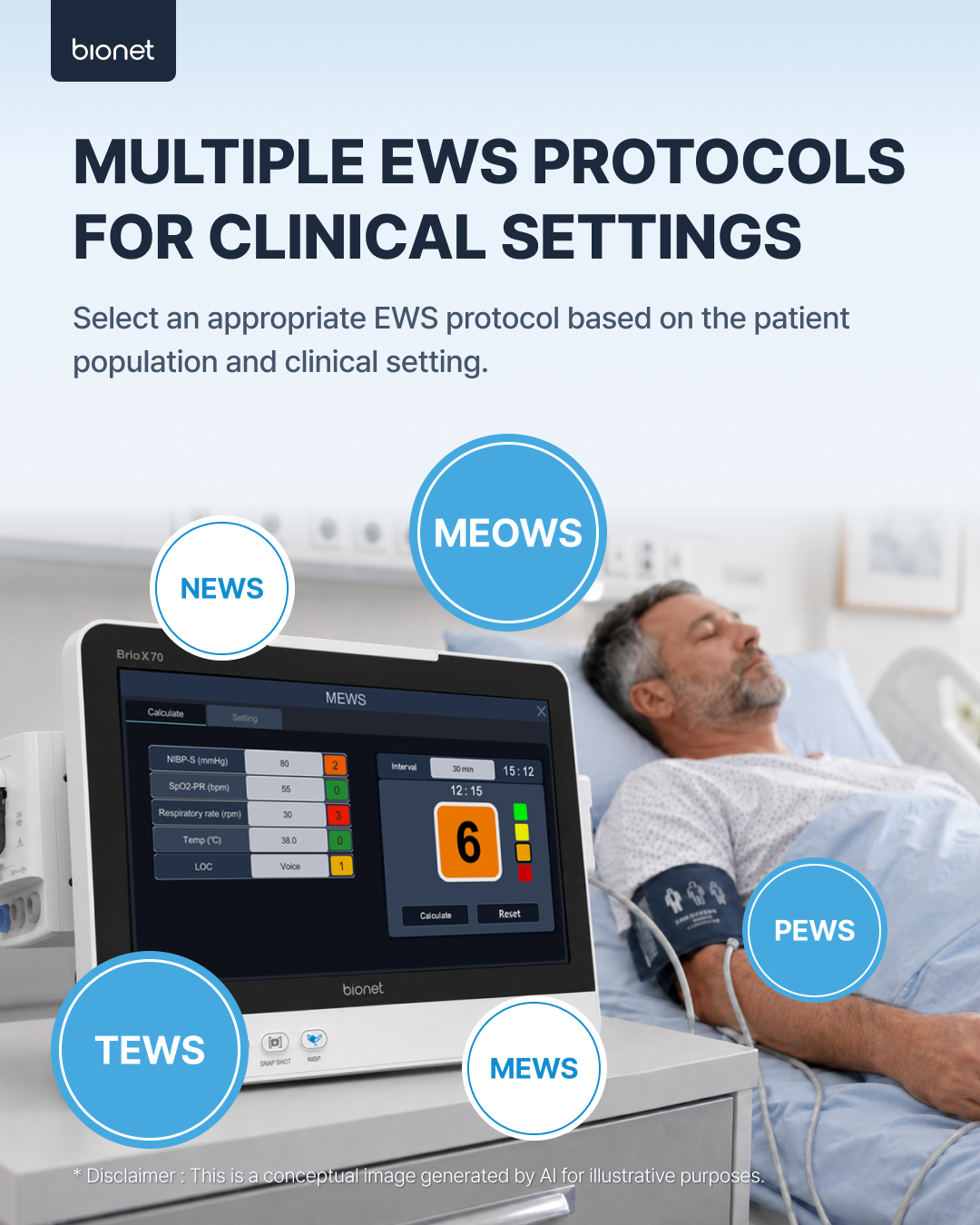

The Bionet Brio X30, X50, and X70 support multiple EWS protocols, including NEWS, MEWS, PEWS, MEOWS, and TEWS.
The table below provides a general overview of common early warning scoring systems.
|
Protocol |
Full Name |
Primary Patient Population or Setting |
Key Features |
|
NEW/NEWS2 |
National Early Warning Score / National Early Warning Score 2 |
Adult inpatients |
Widely used adult scoring systems that assess respiratory rate, SpO₂, supplemental oxygen use, temperature, systolic blood pressure, pulse rate, and level of consciousness. NEWS2 also explicitly accounts for new confusion. |
|
MEWS |
Modified Early Warning Score |
Adults in general wards and emergency care |
A relatively simple scoring system focused on blood pressure, heart rate, respiratory rate, temperature, and level of consciousness. |
|
PEWS |
Pediatric Early Warning Score |
Pediatric patients |
Accounts for age-related differences in normal physiological ranges. Assessments may include respiratory status, cardiovascular status, and behavior or level of consciousness. |
|
MEOWS |
Modified Early Obstetric Warning Score |
Pregnant and postpartum patients |
Designed around pregnancy and postpartum physiology to help identify warning signs of complications such as hemorrhage, hypertension, and sepsis. |
|
TEWS |
Triage Early Warning Score |
Emergency care and triage |
Supports assessment of urgency and triage priority. Depending on the version, it incorporates vital signs, mobility, and the presence of trauma. |
As a broad guide, NEWS focuses on standardized adult assessment, MEWS offers a simpler adult scoring approach, PEWS is designed for children, MEOWS addresses obstetric care, and TEWS supports emergency triage.
When reviewing a result, always check which protocol was used as well as the total score.
The same numerical score can mean different things in different systems, so scores from separate protocols should not be treated as directly equivalent.
EWS Results at a Glance on the Brio X Series

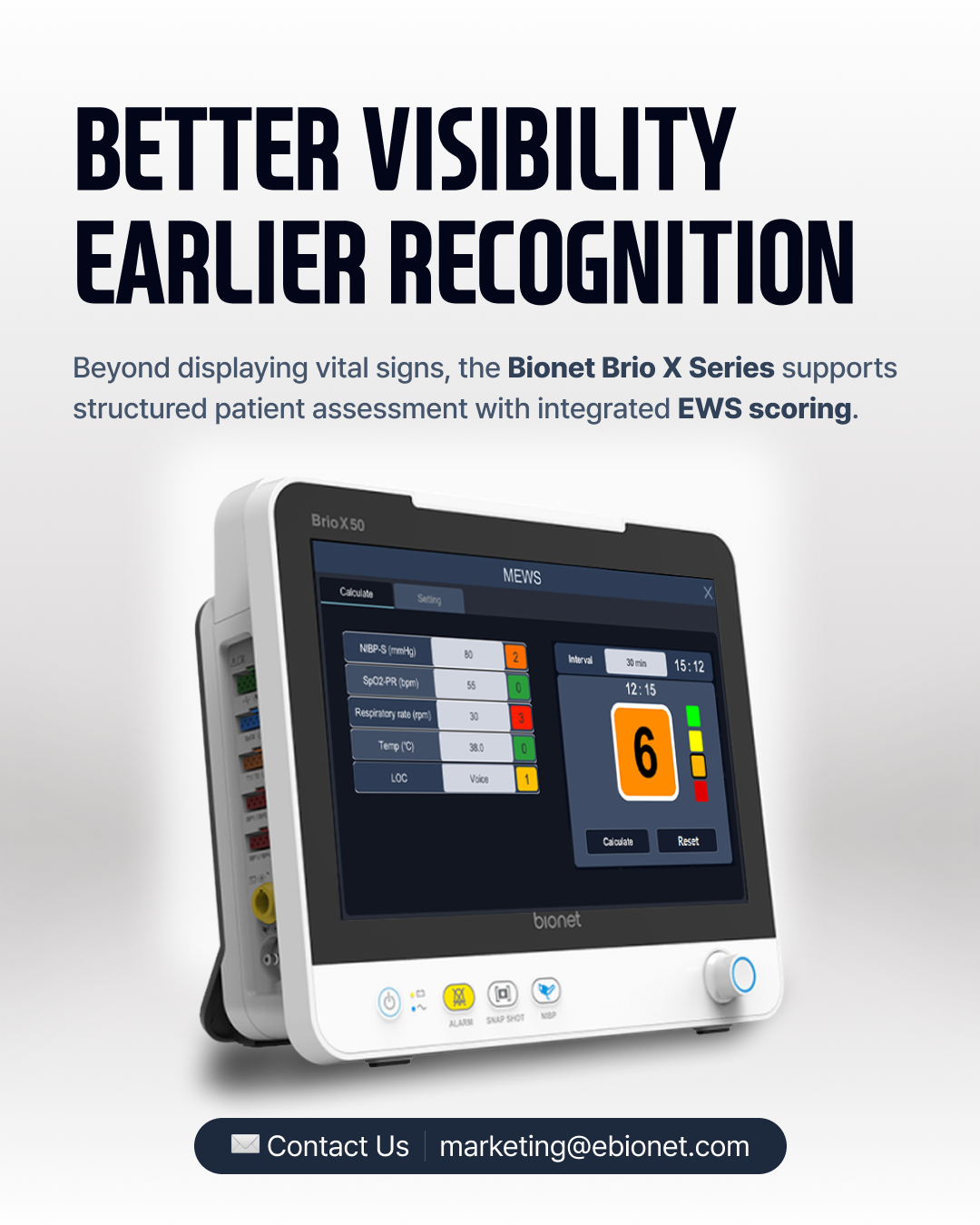

The Bionet Brio X Series displays EWS assessment parameters, scores, and risk levels within the patient monitoring interface.
Parameters such as blood pressure, pulse rate, respiratory rate, temperature, and level of consciousness appear alongside their individual scores. The total score is prominently displayed on the right side of the screen, with color coding to indicate the corresponding risk category.
By viewing individual parameters alongside the total, clinicians can review the overall result and see which findings contributed to it.
The Brio X Series supports this workflow through three key capabilities:
Review assessment inputs: View the measurements and observations used in the assessment.
Check scores and risk levels: Review results through numerical values and color indicators.
Select an appropriate protocol: Choose from the supported EWS protocols to match the patient population and care setting.
By bringing patient monitoring and EWS assessment together, the Brio X Series helps clinicians review a patient’s condition in a structured way.
A Clearer View of Patient Status, a Closer Look at Change
Patient monitoring involves more than reading measurements. It also requires interpreting what they mean and identifying when further assessment is needed.
EWS supports this process by organizing vital signs and clinical observations according to a consistent set of criteria.
The Bionet Brio X Series brings EWS scores and assessment parameters together on one screen to support clinical evaluation.
Explore how the Bionet Brio X Series supports a more structured approach to assessing patient status.
