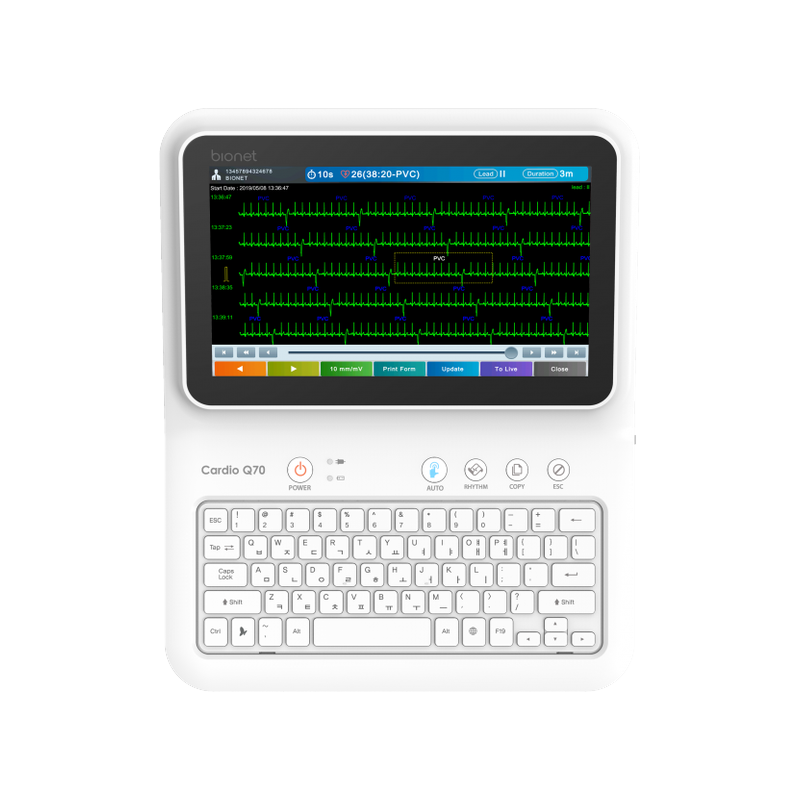

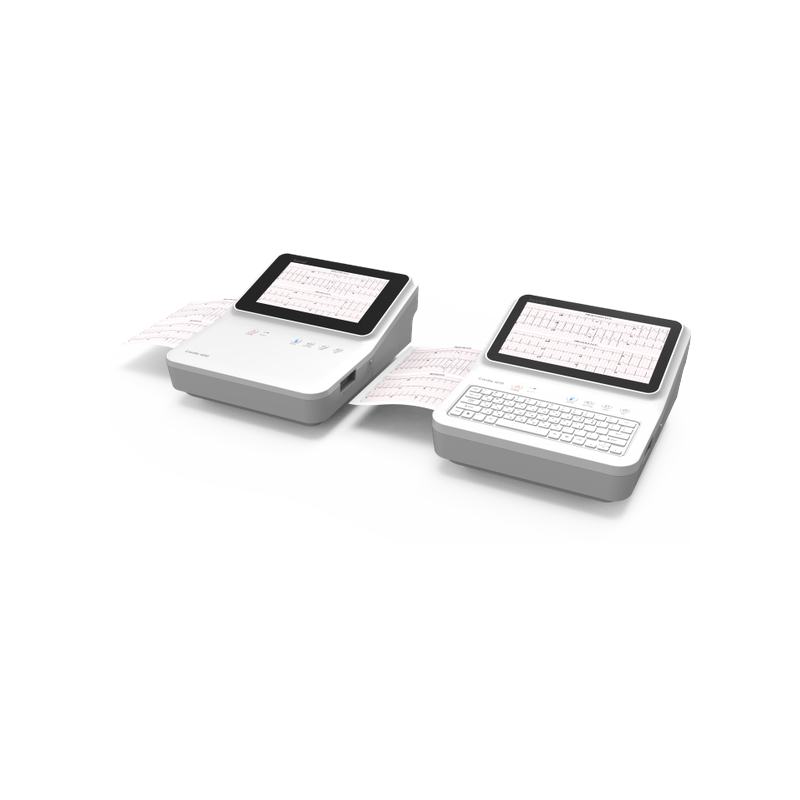

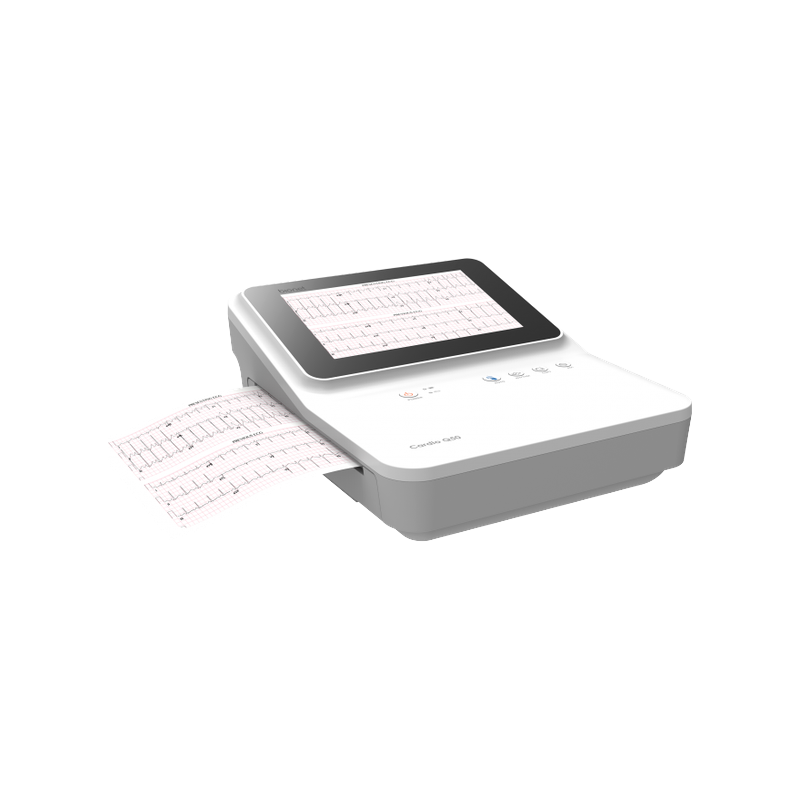

Bionet Cardio Q70 — flagship cardiology-grade 12-lead ECG with Patented Bionet ST-MAP and Vector ECG modeCardio Q70 resting ECG device front view with built-in keyboard and color display showing full 12-lead ECGCardio Q70 resting ECG device with integrated thermal printer and sample 12-lead ECG report outputCardio Q70 resting ECG device lineup with two units side by side showing print capability

Resting ECG

Cardio Q70

Life-saving ECG analysis for accurate cardiac interpretation

When precise resting ECG is crucial, Bionet’s 12CH resting ECG offers an intuitive workflow from acquisition to analysis managing all data for improved interpretation.

Catalogue
Specification
Contact us
Features
Video
Resource

One-touch ‘Auto’

For quick analysis and documentation

Real-Time Arrhythmia Detection

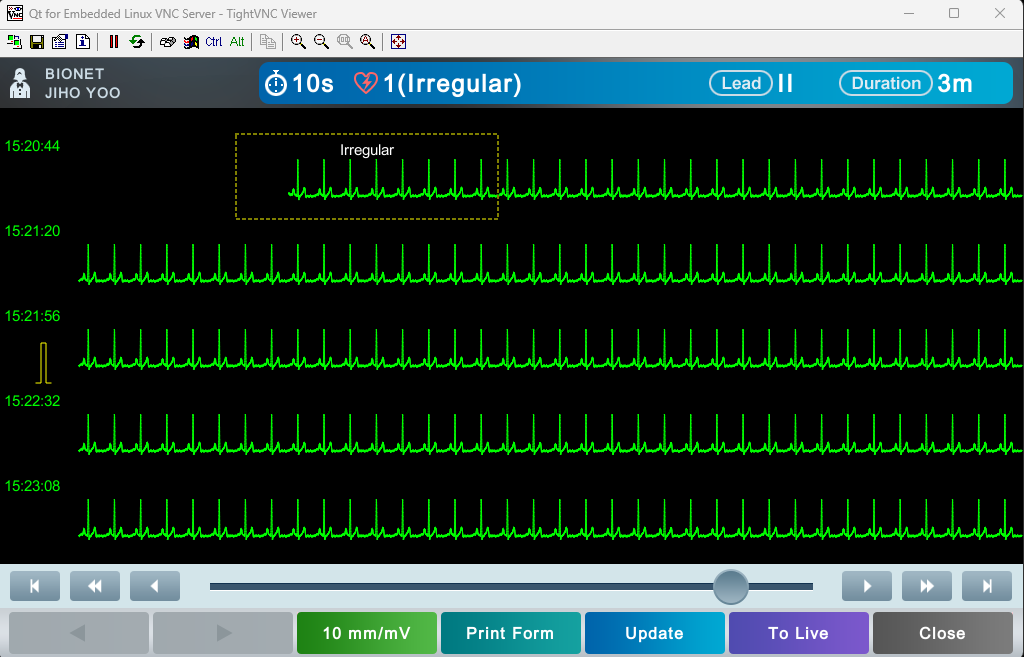

30min full disclosure

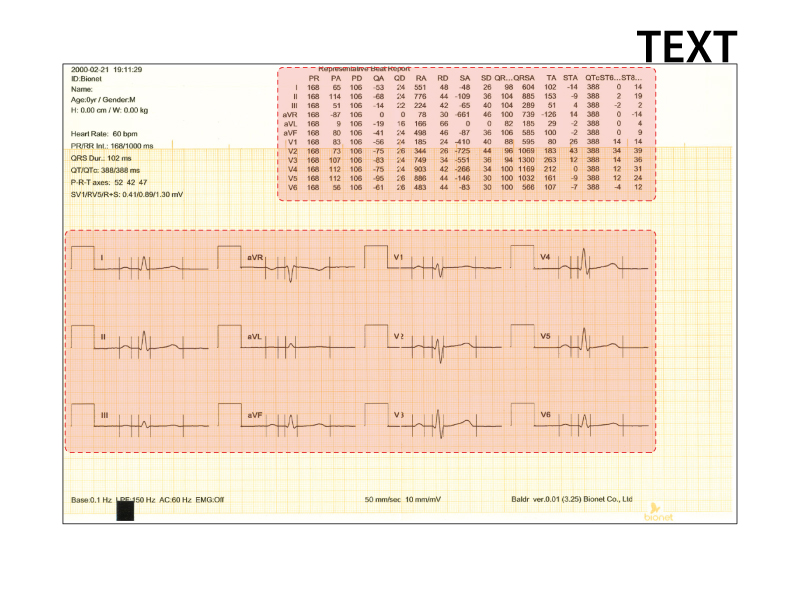

Premium Report

For accurate interpretation

Patent ‘ST Map’

Bionet’s own patented algorithm

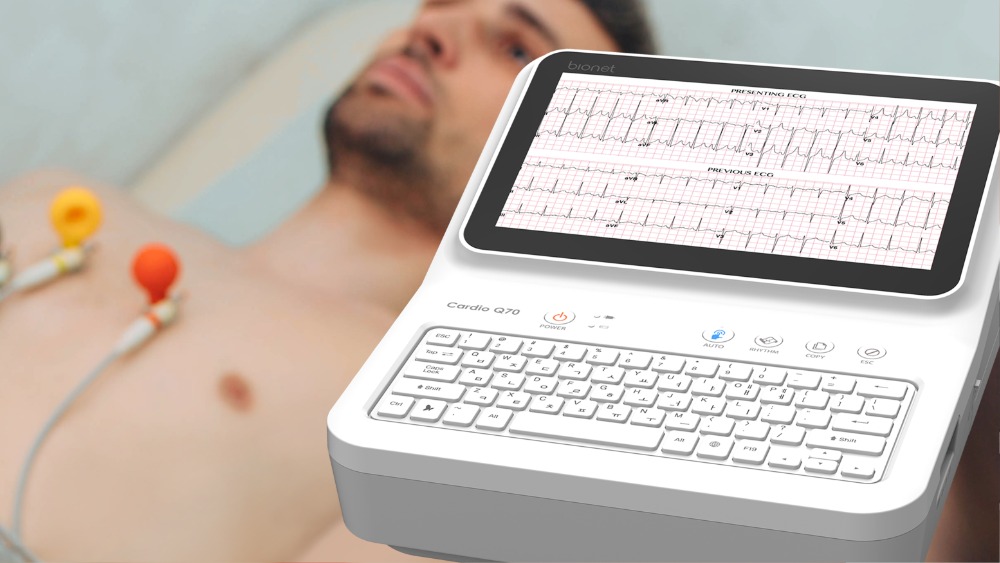

Healthcare professional using the Bionet Cardio Q70 12-channel ECG electrocardiograph during a patient cardiac examination while reviewing ECG reports in a modern clinical environment.

Features

  • Intuitive for precise caregiving workflow

    10.1-inch wide capacitive touch screen guides caregivers the intuitive workflow with AUTO, user-tailored one touch button for acquisition, storage, print-out, and data export in 3 seconds. Q70 enhances user convenience with its built-in keyboard and wide screen.

  • Designed for cyber security

    All patient-related data is thoroughly encrypted and safeguarded by robust security measures requiring authentication and data access authorization.

  • Premium report & analysis

    Q series provides a comprehensive range of report formats and delivers a premium interpretation package
    • Text / Guide / Vector
    • World top-tier Glasgow algorithm using age, gender, race for enhanced accuracy

    • HRV stress test analysis

  • Easy workflow and connectivity

    Our system supports a wide array of formats, including DICOM, JPG, BMP, XML, PDF, MFER, and offers a seamless data conversion and transfer process.
    • User tailored data conversion & export to USB
    • Bi-directional PACS, GDT, EMR server connectivity

  • Bionet Patented ST-Map

    Cardio Q Series has Bionet patented ST-Map which has
    • Visual information of ST segment deviation and spatial orientation
    • Intuitive and easy understanding of each clinical location for subendocardial ischemia and transmural injury

    • More frequent, quick, and accurate monitoring to enhance medical treatment for cases of myocardial ischemia

  • Spirometer with pulmonary function test

    Cardio Q70 has external connection for spirometer handle for pulmonary function tests with
    • FVC, SVC, MVV, COPD
    • Supports formulas of Morris-Polgar, Knudson-ITS, ECCS Quanjer, Korean CJK, Pereira

    • Safe infection free disposable paper mouth-piece solution

  • Glasgow ECG Algorithm

    The Glasgow ECG analysis algorithm provides accurate and reliable diagnostic results tailored to the patient’s age, gender, ethnicity, and medical history.

    • Resting ECG interpretation algorithm developed by Glasgow University
    • Supports QTc measurement to facilitate cardiac risk assessment
    • Highly effective in STEMI interpretation (ST-Elevation Myocardial Infarction)

  • Optimized for Emergency Workflow

    Immediate ECG acquisition with one-touch AUTO or RHYTHM operation, without the need to enter patient data.
    • AUTO button in 3 second : Printing out with interpretation after ECG acquisition
    • RHYTHM : Real time printing out without interpretation
