Resting ECG

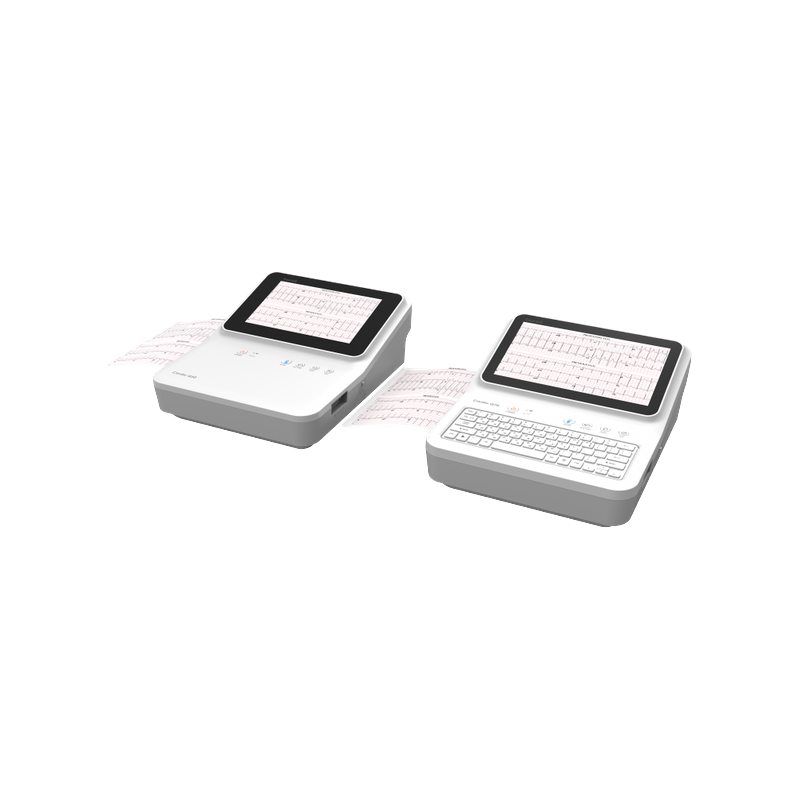

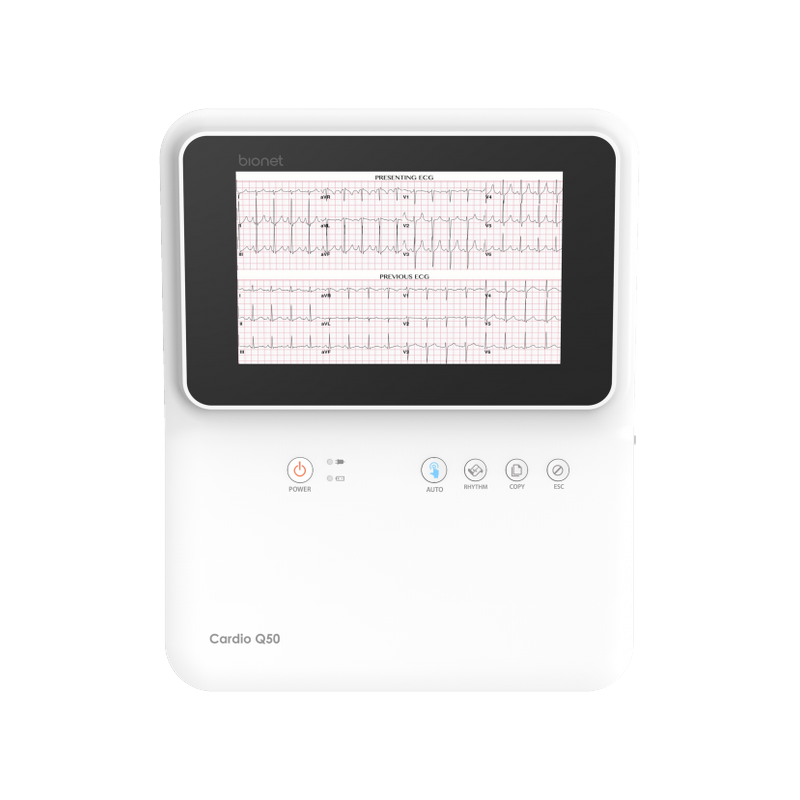

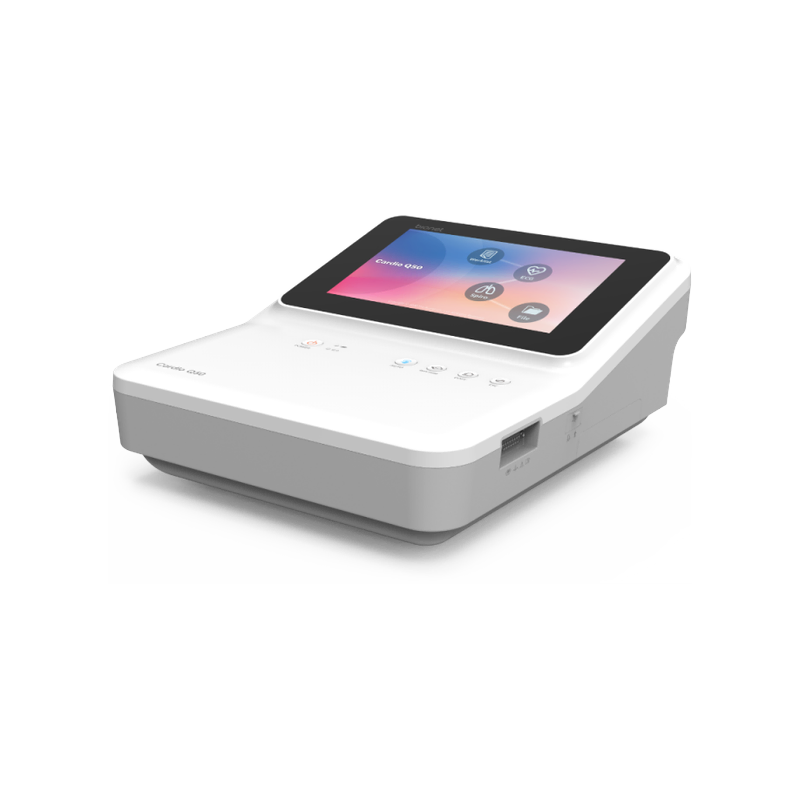

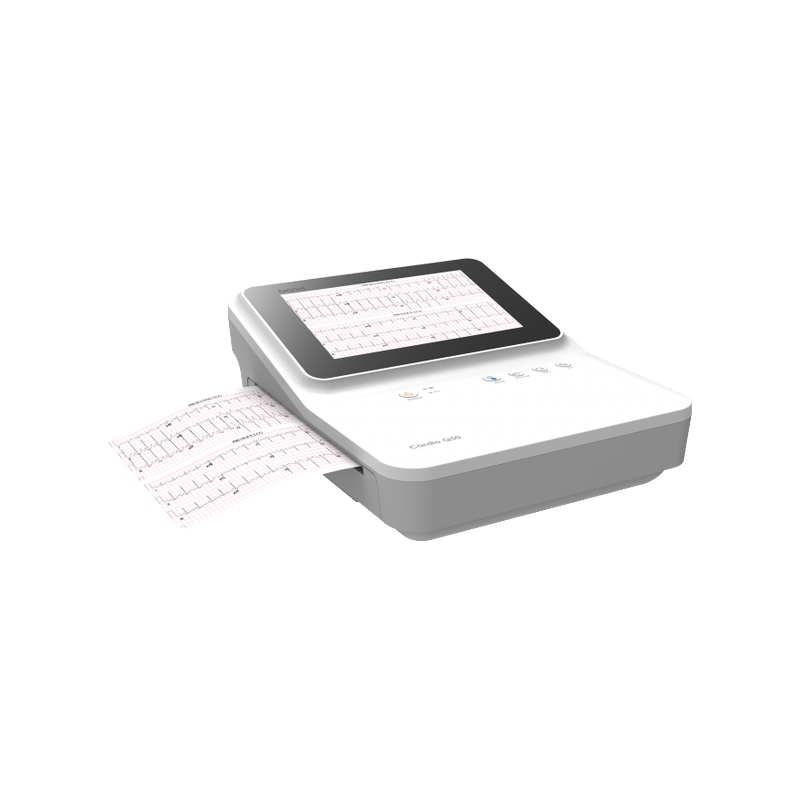

Cardio Q50
Life-saving ECG analysis for accurate cardiac interpretation

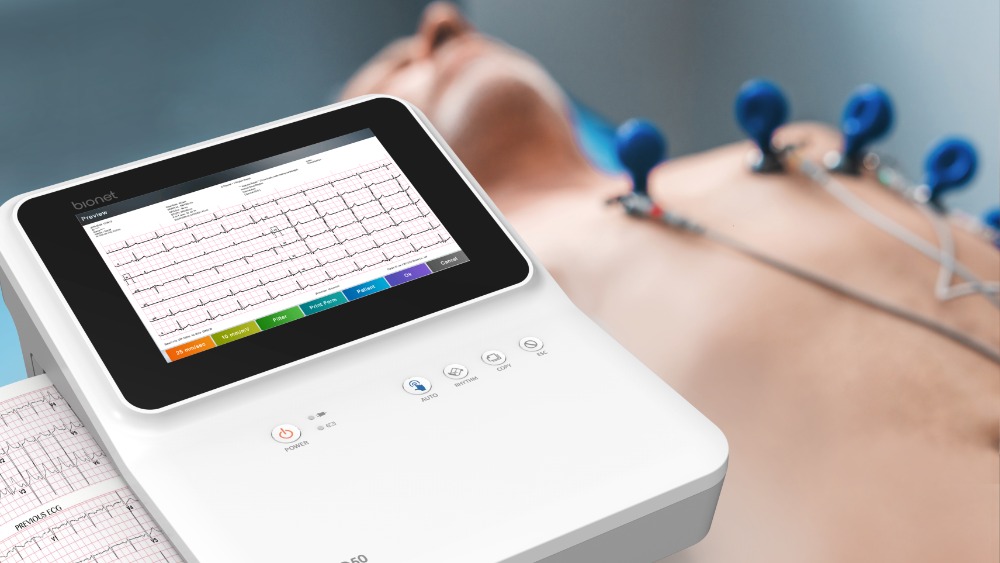

When precise resting ECG is crucial, Bionet’s 12CH resting ECG offers an intuitive workflow from acquisition to analysis managing all data for improved interpretation.
One-touch 'Auto'
For quick analysis and documentation
Real-Time Arrhythmia Detection

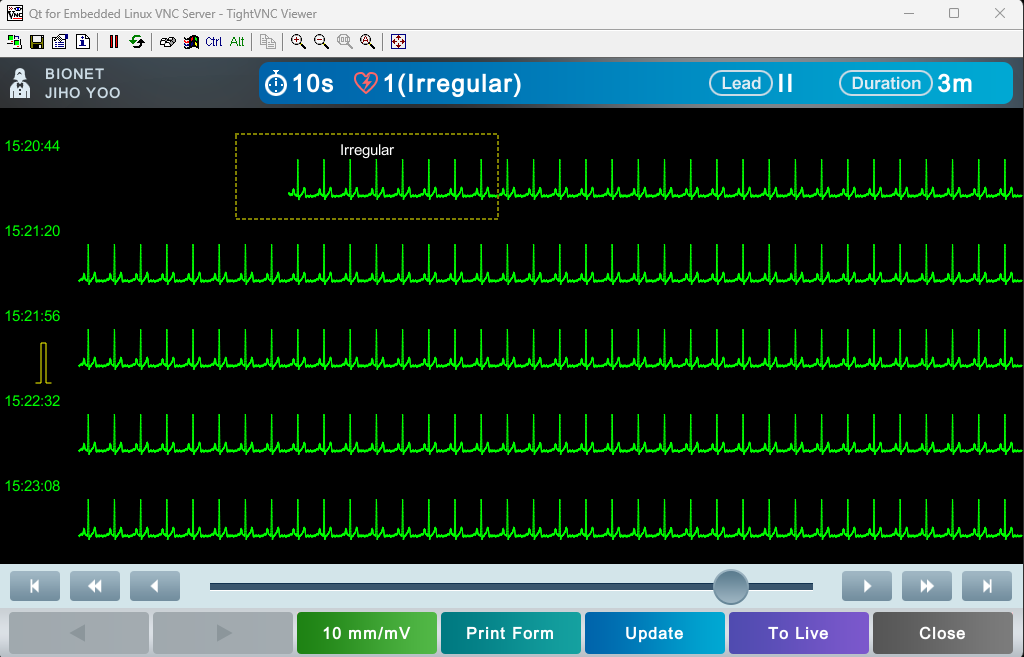

30min full disclosure
Premium Report
For accurate interpretation
Patent 'ST Map'
Bionet's own patented algorithm
-
Intuitive for precise caregiving workflow

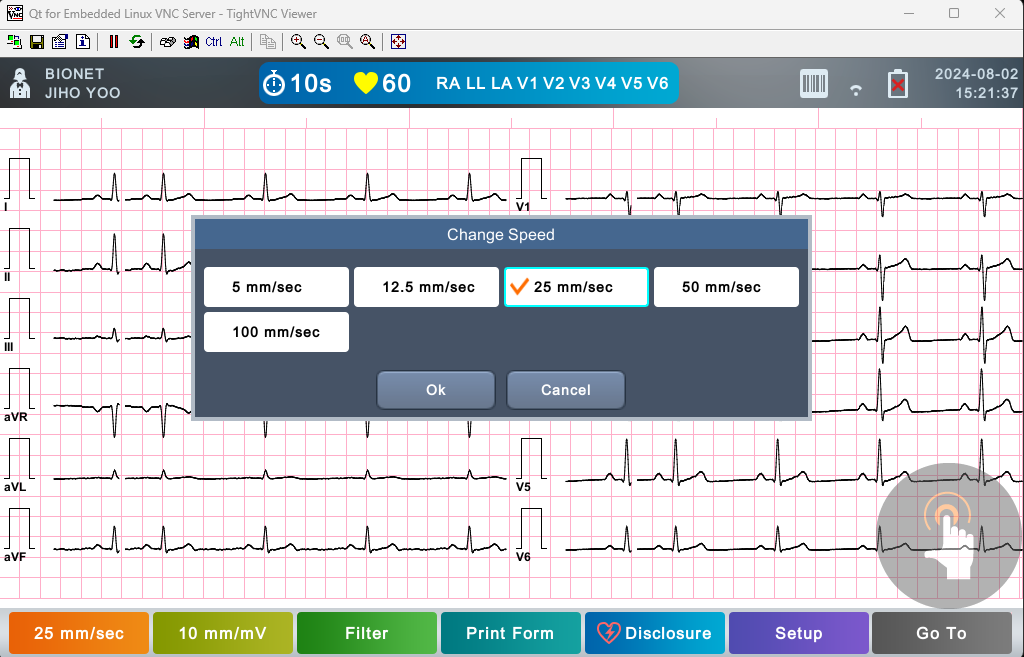

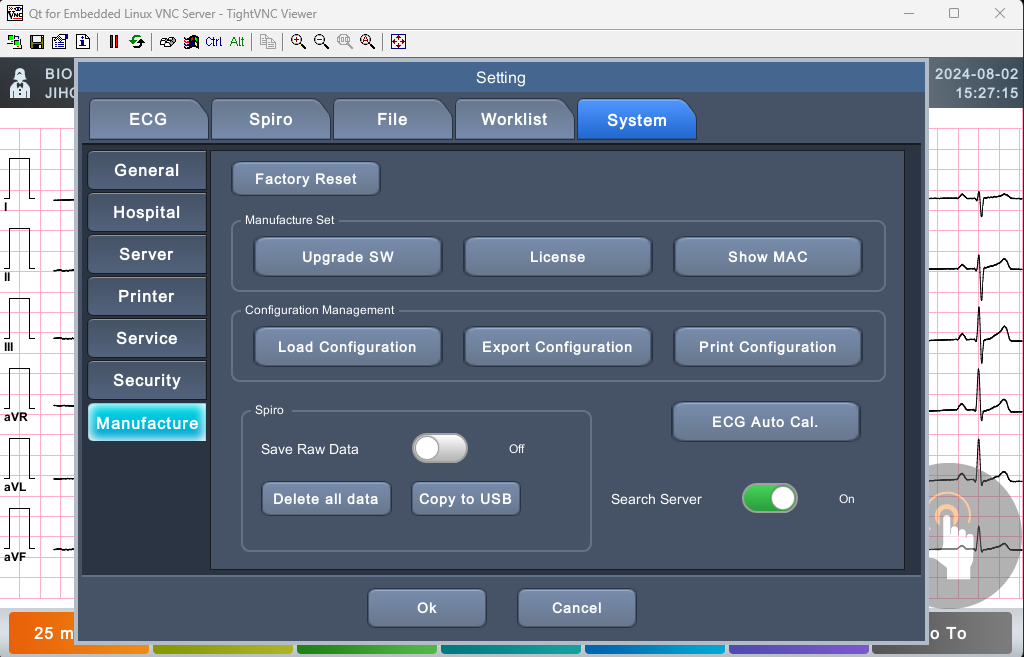

8-inch capacitive touch screen guides caregivers the intuitive workflow with AUTO, user-tailored one touch button for acquisition, storage, print-out, and data export in 3 seconds. -
Designed for cyber security
All patient-related data is thoroughly encrypted and safeguarded by robust security measures requiring authentication and data access authorization. -

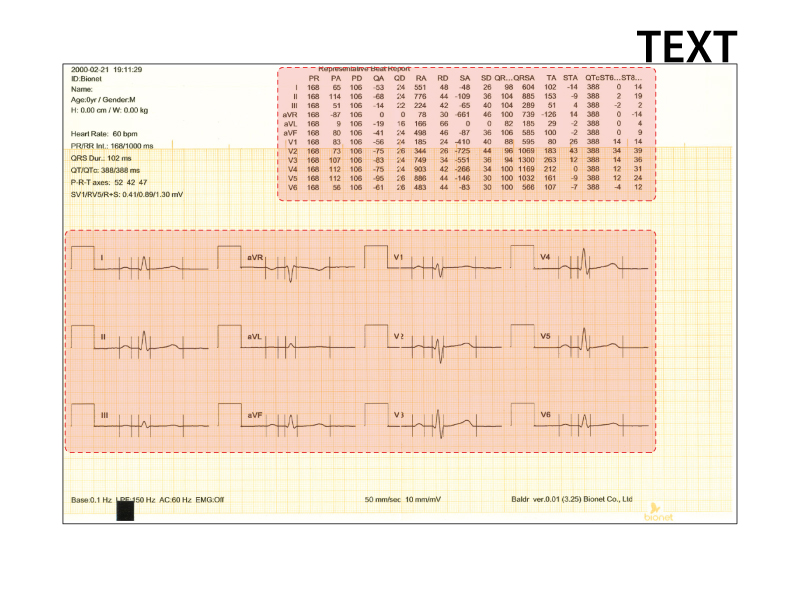

Premium report & analysis
Q series provides a comprehensive range of report formats and delivers a premium interpretation package
• Text / Guide / Vector
• World top-tier Glasgow algorithm using age, gender, race for enhanced
accuracy
• HRV stress test analysis -
Easy workflow and connectivity
Our system supports a wide array of formats, including DICOM, JPG, BMP, XML, PDF, MFER, and offers a seamless data conversion and transfer process.
• User tailored data conversion & export to USB
• Bi-directional PACS, GDT, EMR server connectivity -
Bionet Patented ST-Map
Cardio Q Series has Bionet patented ST-Map which has
• Visual information of ST segment deviation and spatial orientation
• Intuitive and easy understanding of each clinical location for
subendocardial ischemia and transmural injury- More frequent, quick, and accurate monitoring to enhance medical
treatment for cases of myocardial ischemia
-
Spirometer with pulmonary function test
Cardio Q50 has external connection for spirometer handle for pulmonary function tests with
• FVC, SVC, MVV, COPD
• Supports formulas of Morris-Polgar, Knudson-ITS, ECCS Quanjer, Korean
CJK, Pereira
• Safe infection free disposable paper mouth-piece solution -
Glasgow ECG Algorithm
The Glasgow ECG analysis algorithm provides accurate and reliable diagnostic results tailored to the patient’s age, gender, ethnicity, and medical history.
• Resting ECG interpretation algorithm developed by Glasgow University
• Supports QTc measurement to facilitate cardiac risk assessment- Highly effective in STEMI interpretation (ST-Elevation Myocardial Infarction)
