Before You Record an ECG: Understanding RA–LA Lead Reversal and Its Impact on Waveforms
Hello from Bionet! 😃
Preparing for a 12-lead ECG involves placing multiple electrodes and connecting their lead wires. But did you know that 🚨a simple connection error can change the way an ECG looks🚨?

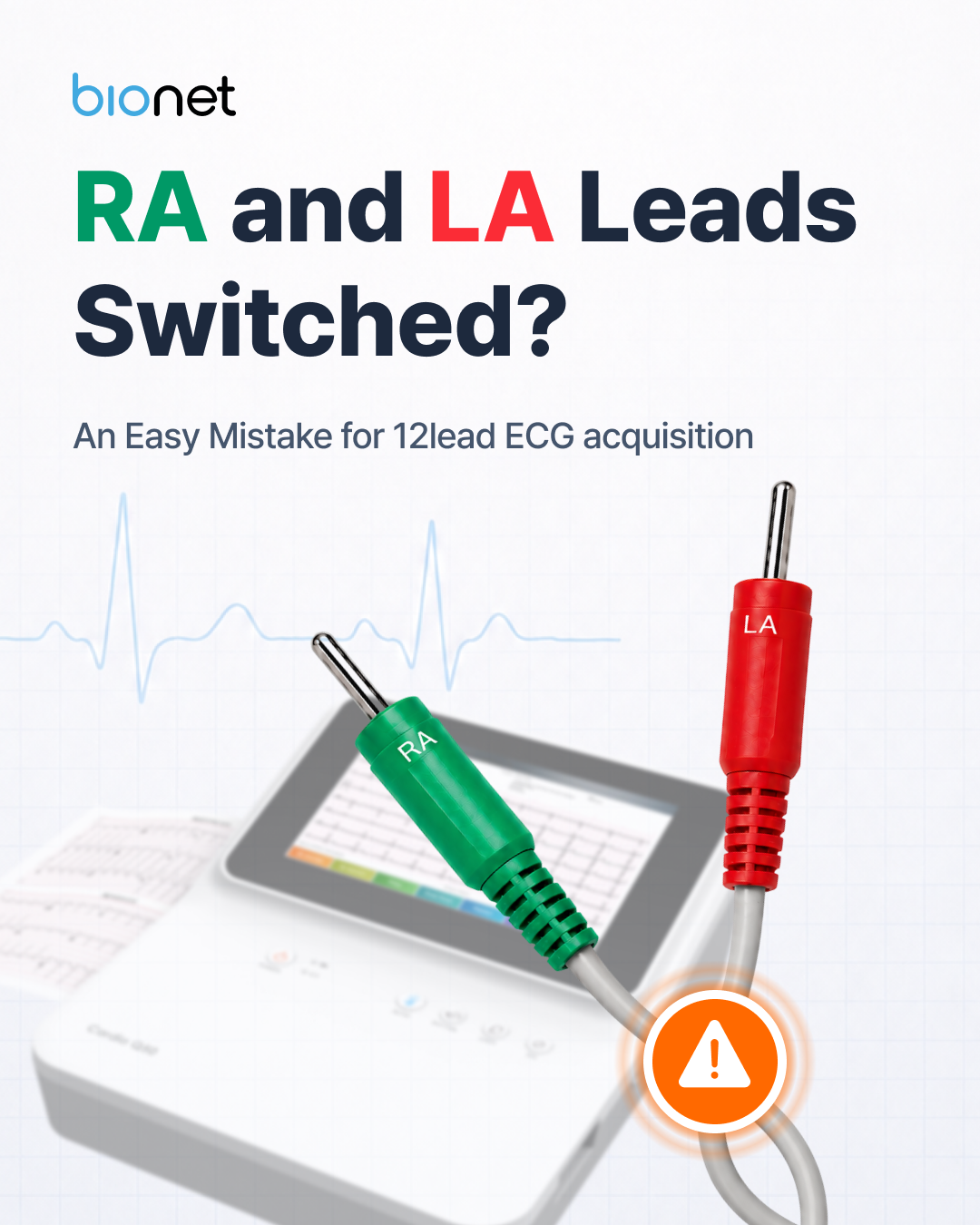

One easily overlooked mistake is switching the right and left arm lead wires, known as RA–LA lead reversal.
In this post, we’ll explain what happens when these connections are reversed, what to check before recording an ECG, and how Bionet’s Cardio Q50 and Q70 help alert clinicians to a potential arm lead reversal.🤗
What Do RA and LA Mean?
In a 12-lead ECG setup, RA stands for Right Arm, and LA stands for Left Arm. These labels identify the lead wires that connect to the electrodes on the patient’s right and left arms.
Before recording an ECG, each lead wire should be checked to make sure it is connected to the correct electrode. When multiple electrodes need to be placed quickly, however, the RA and LA connections can sometimes be switched.
This is called RA–LA lead reversal, or arm lead reversal.
Incorrect Lead Connections Can Affect ECG Interpretation

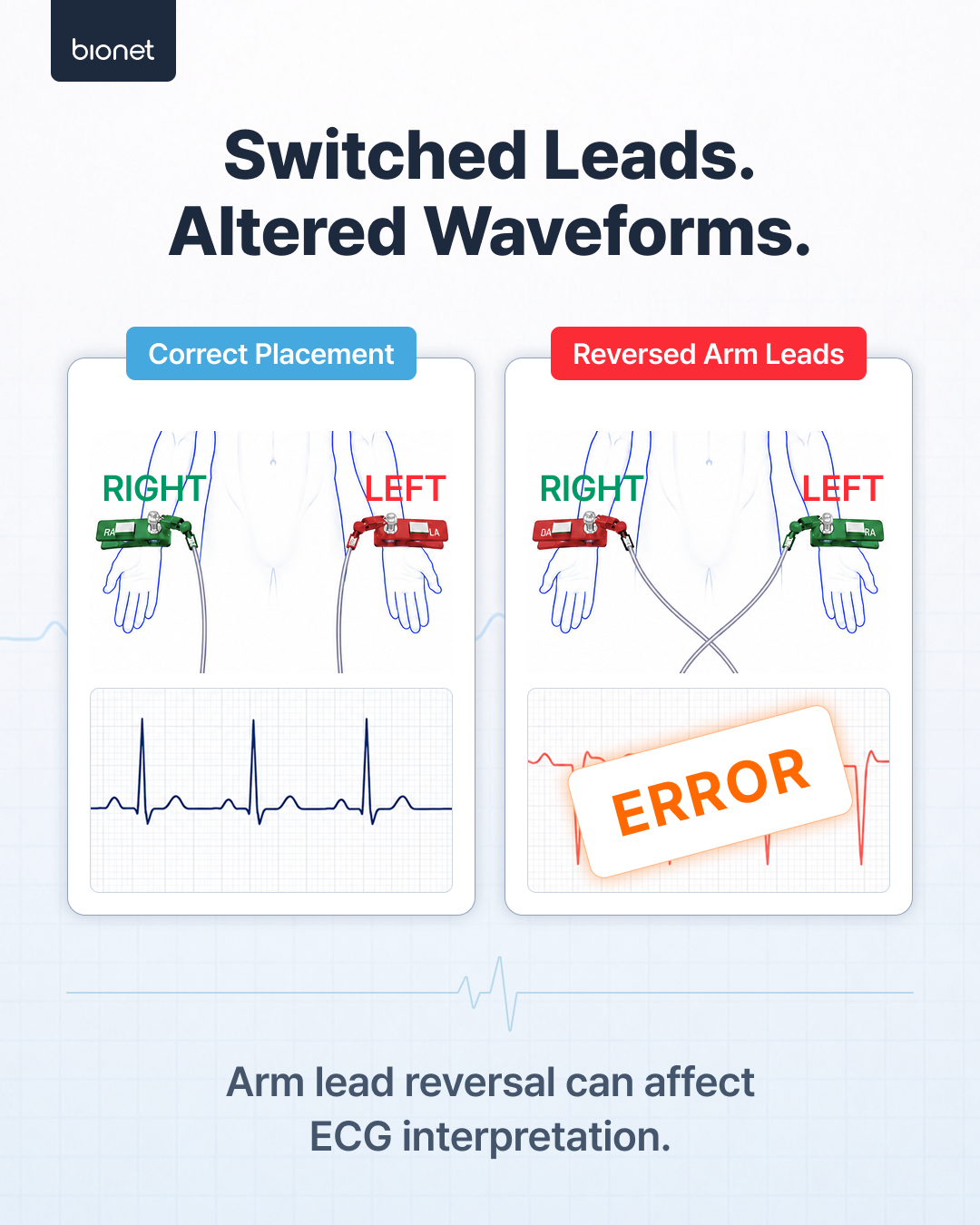

When the RA and LA lead wires are switched, the heart’s electrical activity is recorded from a different orientation than intended.
As a result, some limb-lead waveforms may appear abnormal because of the connection error. An otherwise normal ECG may look abnormal, or the recording may appear to show changes compared with a previous ECG.
Meanwhile, the chest leads may still look normal, making it easier to mistake a lead connection error for a change in the patient’s condition.☝🏻
If an ECG looks unexpected, check electrode placement and lead connections as part of the review. If a connection error is suspected, correct the connections and record the ECG again.
A Quick Checklist Before Recording an ECG
A few simple checks can help reduce the risk of RA–LA lead reversal and support a reliable recording.😀
✔️ Check the RA and LA labels on the lead wires.
✔️ Confirm the patient’s right and left sides before connecting the wires.
✔️ Trace any crossed or tangled cables to verify that each wire reaches the correct electrode.
✔️ Make sure the electrodes have good skin contact.
✔️ Recheck the connections if the waveforms look unexpected.
Remember: right and left always refer to the patient’s right and left—not the clinician’s viewing position.
How Do the Cardio Q50 and Q70 Alert Clinicians to Arm Lead Reversal?

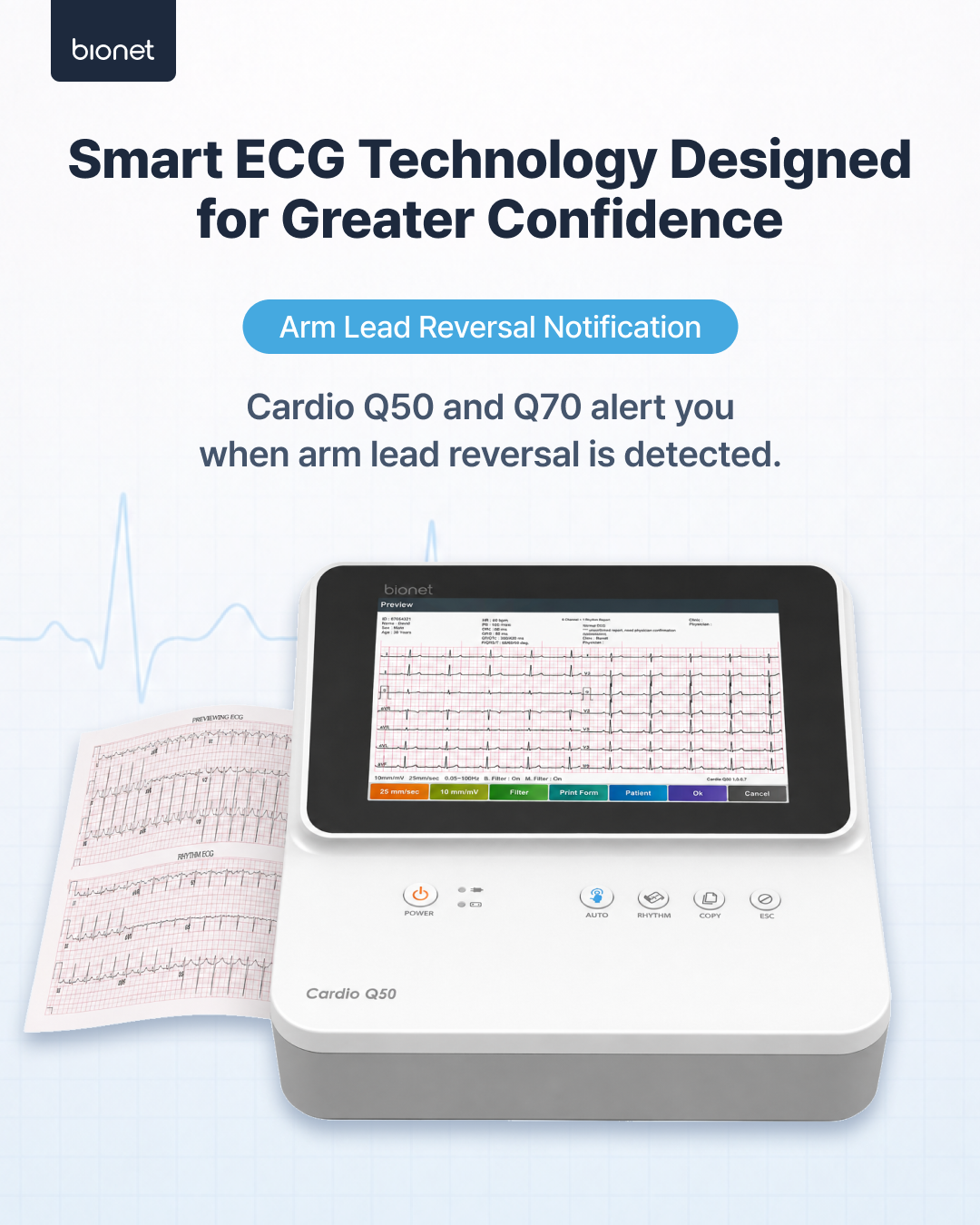

Bionet’s Cardio Q50 and Q70 feature Arm Lead Reversal Notification.

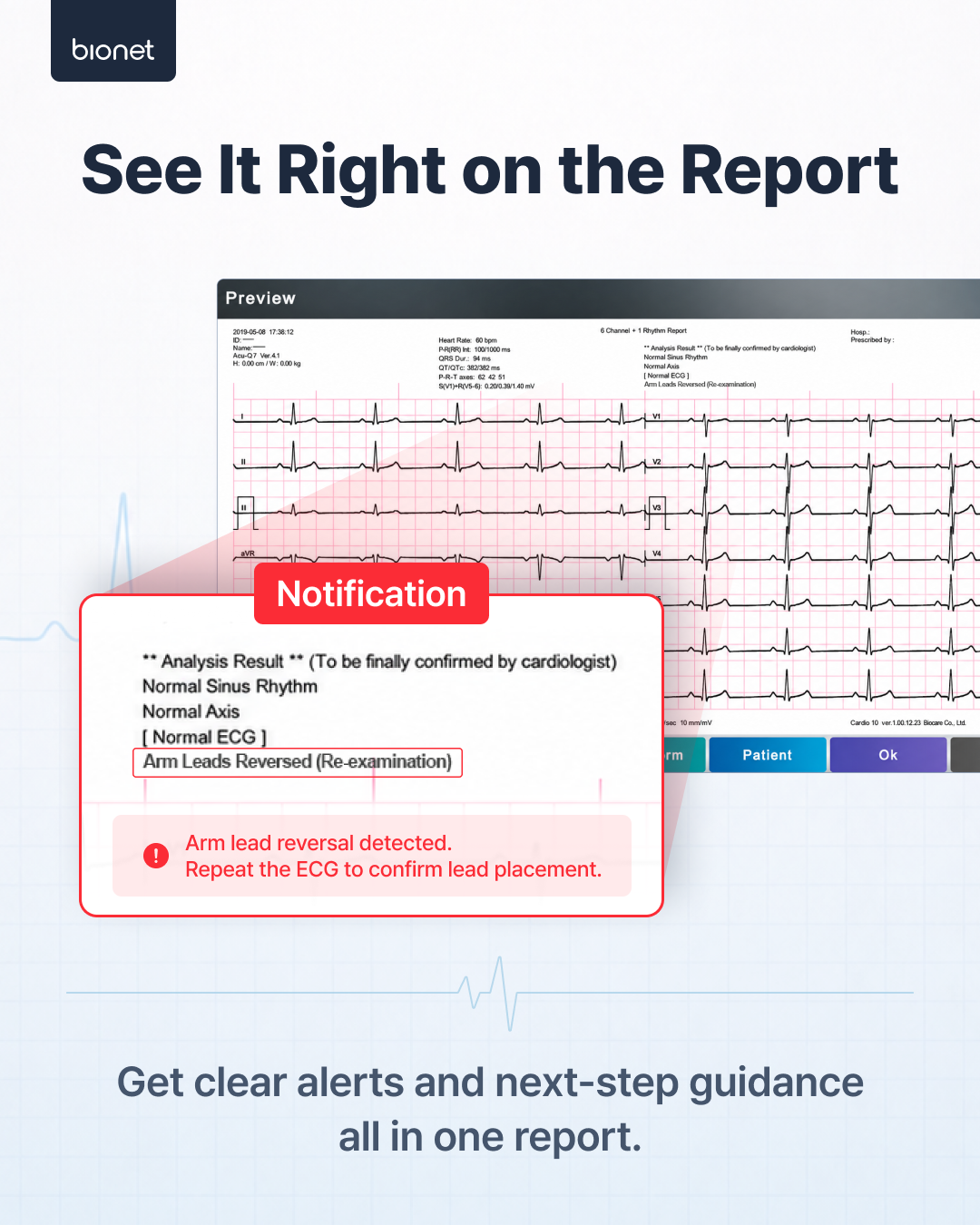

When the device detects an arm lead reversal, it displays the following message on the ECG report:
“Arm Leads Reversed (Re-examination)”
This message alerts clinicians to check the arm lead connections and repeat the recording.
Having the notification on the report provides an additional opportunity to verify the connections during review. It can help reduce the risk of interpreting an ECG without recognizing that the arm leads were reversed.
Small Connection Checks Make a Difference
Reliable ECG recordings start with proper electrode placement and lead connections.⭐️
Checking the setup before each recording remains an essential step. The notification features on the Cardio Q50 and Q70 provide an additional prompt to check for a possible connection error, even in a busy clinical setting.
Device-generated analysis and notifications are intended to support clinical judgment. A qualified healthcare professional should review the final ECG in the context of the patient’s condition, electrode placement, and recorded waveforms.☝🏻
Bionet supports an efficient ECG workflow—from signal acquisition and analysis to printing and data integration.❤️
